Description
|
Processor
|
|
|
CPU
|
Core i5-8250U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.40 GHz)
|
|
TDP
|
15W
|
|
CPU Lithography
|
14 nm
|
|
Memory Specifications
|
|
|
Max Memory Size
|
64GB
|
|
Memory Types
|
260 pin DDR4 SO-DIMMs
|
|
Memory Channels
|
Dual Channels
|
|
ECC Memory
|
Don’t support
|
|
Storage Specification
|
|
|
m.2 SSD
|
1 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME)
|
|
SATA
|
1 x SATA3.0 for 2.5 inch HDD/SSD
|
|
mSATA
|
1 x mSATA slot
|
|
Graphics
|
|
|
Processor Graphics
|
UHD Graphics 620
|
|
HD-MI
|
1 x HD-MI 2.0 (4K)
|
|
DP Port
|
1 x DP+1 x EDP
|
|
Power Specification
|
|
|
Power Adapter
|
12V Power Input, supply 12V 5A power adapter within the package
|
|
Auto Power On
|
Support Auto Power On Function
|
|

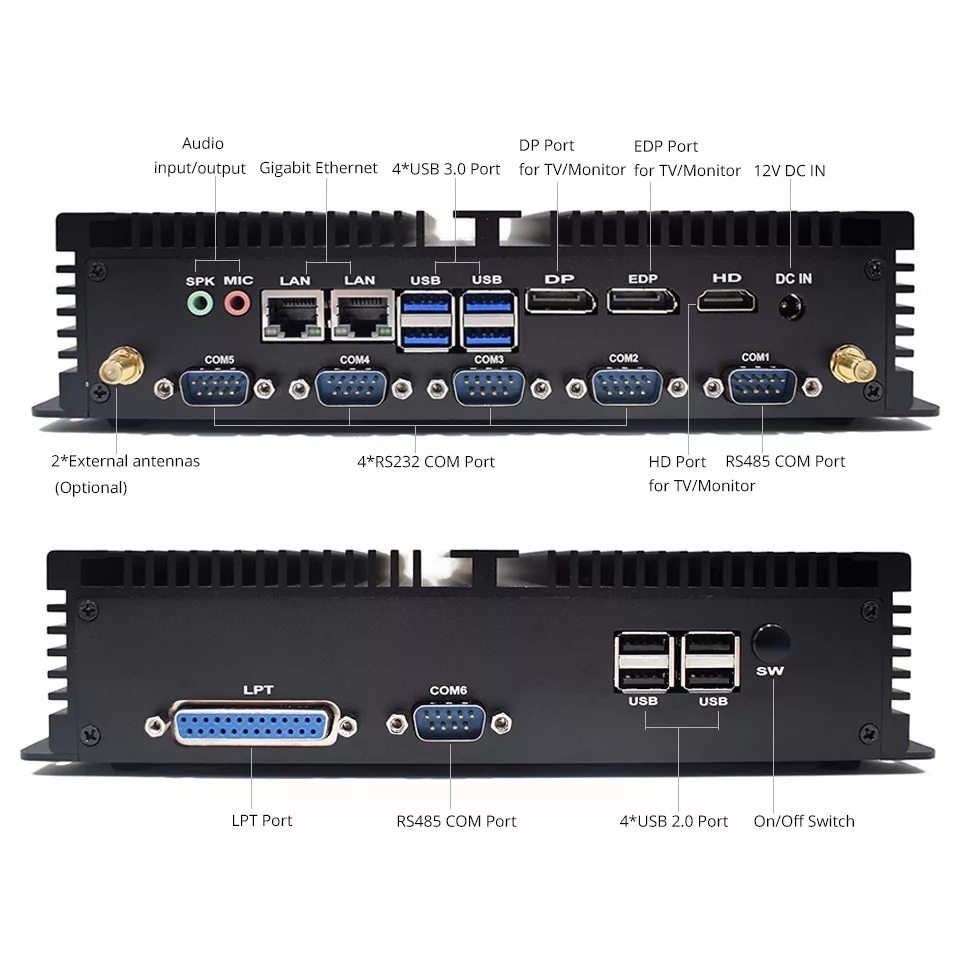

In & Out interfaces
|
|
|
USB Port
|
4 x USB 3.1 port, 4 x USB 2.0 port
|
|
Audio
|
3.5mm 1 Jack, MIC in/ Line out
|
|
Video
|
HD-MI+DP+EDP, support 3 Synchronized displays
|
|
Power Input
|
5.5mm 12V In
|
|
Lan Port
|
2 x -I210/I211 Gigabit RJ45 Lan
|
|

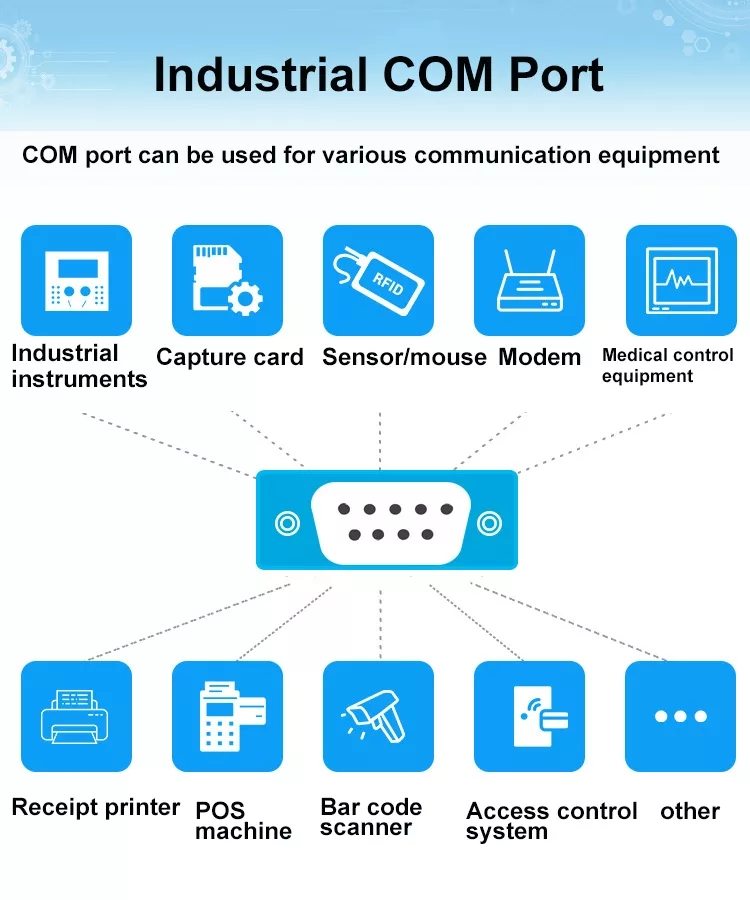

Com Port
|
4 x RS232 Com port ,2xRS485 Com port
|
|
Others
|
|
|
System
|
Support Windows 7/10, Linux
|
|
Case Material
|
Aluminium Alloy
|
|
Dimension
|
Mini PC size 237x175x53mm
Package size 320x260x80mm |
|
Weight
|
Gross weight 2.8 kg
|
