Description
|
CPU
|
Celeron J1900 , Pentium Processor/ I3 / I5 / I7
|
|
Memory
|
LPDDR3-1866, DDR3L-1600
|
|
Hard Disk
|
Support Intstall 1 * mSATA SSD and 1 * 2.5 inch SATA HDD / SSD
|
|

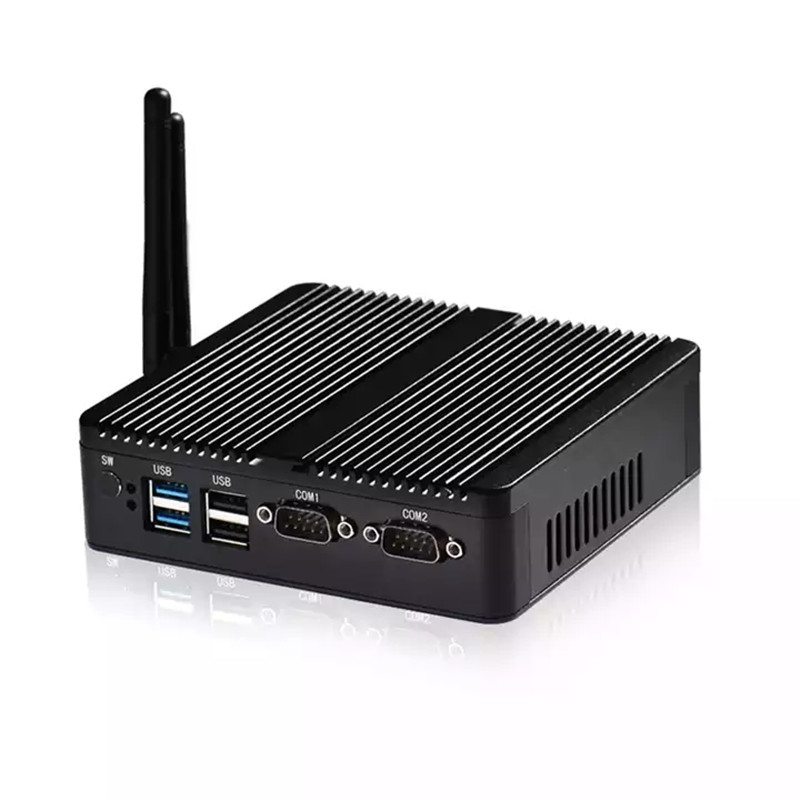

I/O ports
|
• Power on/off
• 2 x USB 2.0 • 2 x USB 3.0 • 1 × DC IN 12V/5A • 1 × HD-MI • 1 × VGA • 2 × LAN (RJ-45 Ports 10/100/1000 Mbps Adaptive) • 1 × MIC • 1 × SPK • 2 x COM |
|
Internal Connectors |
• 1 x Mini pcie port (only for mSATA SSD)
• 1 x Mini pcie port (only for WIFI, only for USB singal) • 1 x DDR3L SO-DIMM Memory Slot • 1 x SATA Port • 1 x SATA power connector • 1 x Automatically boot jumper |
|
Operating System
|
Support Windows 7/8/10, Linux, etc
|
|
RAM(optional)
|
2GB / 4GB / 8GB
|
|
SSD/HDD(optional)
|
SATA / MSATA / M.2 SATA 64G/128G/256G 512G SSD SATA 250G /360G /500G / 1TB 2.5 HDD
|
|
WiFi
|
With dual antenna,300M,802.11.b/g/n
|
|
Case Color
|
Black / White /Silvery (Other Color Can Be Customized)
|
|
Power
|
Input: DC100-240V AC/50-60Hz Output: DC 12V/5A
|
|
Operating Temperature
|
-20-80℃
|
|
Storage Temperature
|
0℃-80℃
|
|
Relative Humidity
|
10%~90% (non-condensing)
|
|
Dimension
|
200X140X110 mm
|
|
Weight
|
1.95kg
|
